THE NEW DATA LOGGER GENERATION!

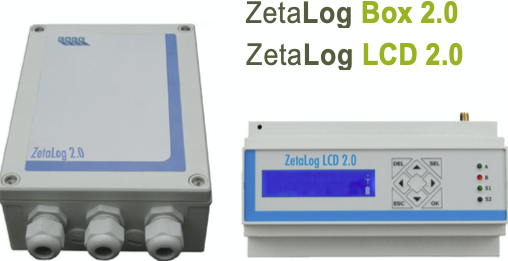

ZetaLog Box and LCD are data loggers specifically designed to be used on the field, allowing an easy remote control and data management.
ZetaLog uses a combined GSM / SMS and LTE technology, featuring the following data functions:
- Data and alarms delivery by SMS.
- Direct LTE data communication to ZetaCED Web server, allowing remote data display and management.
- MicroSD/SD on board for up to 8GB of data and logs.
- FTP files transfer.
- Core parameters configuration through SMS messages.
- Direct control of the serial devices through LTE gateway remote connection.
- Possibility to manage SYSTEA WIZ, YSI ® and Eureka probes
ZetaLog Box is integrated in an IP65 PVC compartment. Both Zetalog versions include a small 1.9 Ah rechargeable battery pack and the battery charger.
ZetaLog can be programmed to power ON and OFF periodically the serial devices and run the analytical measurements.
ZetaLog is able to manage also complex analytical sequences.
ZetaLog includes on board N.5/8 digital inputs, N.4 relay/N.8 digital outputs, N.4 analog inputs, N.4 analog outputs.
Voltage and temperature sensors integrated on board.
Low power consumption with GSM “ready to work” (12VDC@20 mA).
ZetaLog can be powered in AC (85-230 VAC) or DC (8-36 VDC) mode.
TECHNICAL SPECIFICATIONS
ON BOARD I/O (BOX/LCD)
N.5 Digital inputs/N.8 Digital Input (LCD)
N.4 Relay SPST 5A/N.8 high side digital output (LCD)
N.4 ADC with 0-10VDC or 0-20mA
N.4 DAC with 0-10VDC or 0-20mA
COMMUNICATION PORTS
N.2 RS232 ports for instruments connection
N.1 RS485 for I/O expansions
GENERAL FEATURES
- MicroSD socket for up to 8GB storage/SD socket up to 8GB (LCD)
- GSM Quadriband for worldwide usage
- Send data and alarms generated by:
- SMS
- ZetaCED Web Server on demand • Custom FTP server
- IP65 container with external antenna (only Box)
- Low power consumption to ensure a long battery-powered operation.
